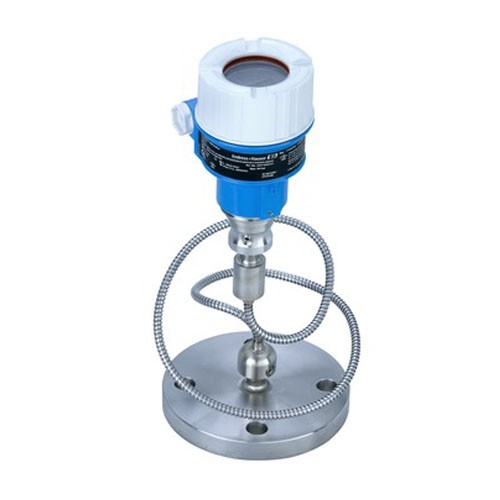

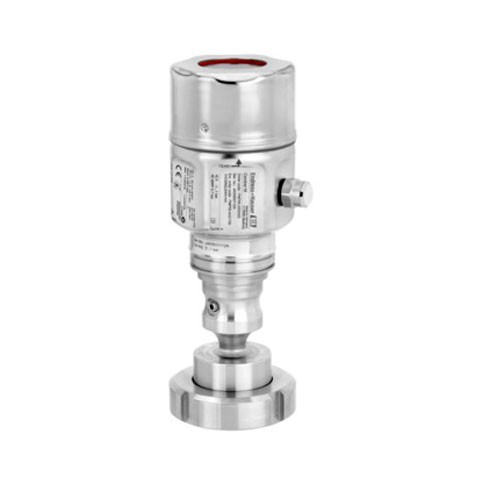

PMP55 Absolute and gauge pressure transmitter

Product Item : PMP55-BD21JA1PGBU7JA5B
Category： Pressure
Measuring Principle:Hydrostatic
Characteristic / Application:Smart and reliable pressure transmitter, with piezoresistive measuring cell and metal welded process isolating diaphragm and diaphragm seal.
Pressure measuring range:1bar...400bar (15psi...6000psi)
Output:4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus
INQUIRY EMAIL

Large variety of different process connections and membrane materials
New TempC Membrane minimizes influences of ambient and process temperature fluctuations
Easy menu-guided commissioning via on-site display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
For process pressure monitoring up to SIL2, certified to IEC 61508 and IEC 61511
Modular concept for easy replacement of display or electronics
Seamless and independent system integration (HART/PA/FF)

Single chamber aluminum or stainless steel (316L) housing.

Process connections: Threads, flanges or hygienic connections
Process temperature: -70 to +400°C (-94 to +752°F)
Measuring ranges: -1/0 up to +400bar (-15/0 up to +6,000psi)
Accuracy: ±0.15%, "Platinum" ±0.075%
International explosion protection certificates, overfill prevention WHG, SIL, hygienic approvals, marine approvals

Features and specifications

Continus Liquids

Measuring Principle	Hydrostatic
Characteristic / Application	Smart and reliable pressure transmitter, with piezoresistive measuring cell and metal welded process isolating diaphragm and diaphragm seal.
Supply / Communication	4 ..20mA HART: 11,5...45V DC Ex ia: 11,5...30V DC PROFIBUS PA FOUNDATION Fieldbus
Accuracy	0,15% Platinum 0,075%
Long term stability	0,1% of URL/year
Ambient temperature	-40°C...85°C (-40°F...185°F)
Process temperature	-70°C…400°C (-94°F…752°F)
Process pressure absolute / max. overpressure limit	600bar (9000psi)
Pressure measuring range	1bar...400bar (15psi...6000psi)
Main wetted parts	316L AlloyC Montel Tantal Rhodium
Process connection	Diaphragm seal Flanges (DIN, ASME, JIS) Tri-Clamp ISO2852 Hygienic connections
Max. measurement distance	4000m (13.123ft) H2O
Output	4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus
Certificates / Approvals	ATEX, FM, CSA, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI SIL EN10204-3.1 NACE CoC ASME-BPE 3A, EHEDG Marine
Options	local display
Application limits	Measuring cell: Metal welded If pressurized, possibly use differential pressure meas-urement with two pressure transmitters (electronic dp). Observe ratio head pressure : hydrostatic pressure

Pressure

Measuring Principle	Hydrostatic
Characteristic	Smart and reliable pressure transmitter, with piezoresistive measuring cell and metal welded process isolating diaphragm and diaphragm seal.
Supply voltage	4...20mA HART 11,5...45V DC (Non Ex): Ex ia: 11,5...30V DC PROFIBUS PA: 9...32 V DC (Non Ex) FOUNDATION Fieldbus: 9...32 V DC (Non Ex)
Reference Accuracy	Standard 0,15% Platinum 0,075%
Long term stability	< 0,1% of URL/year < 0,175% of URL/ 5 years
Process temperature	-70°C…400°C (-94°F…752°F)
Ambient temperature	-40°C...85°C (-40°F...185°F)
Measuring cell	400mbar...400bar (15psi...6000psi) relative/ absolute
Smallest calibratable span	20 mbar (2.9 psi) rel./ abs.
Vacuum resistance	50 mbar (7.25psi) abs.
Max. Turn down	20:1
Max. overpressure limit	600bar (9000psi)
Process connection	Thread: G1/2...G2, MNPT1/2...MNPT2 Flange: DN25...DN100, ASME 1"...4", JIS 10k Diaphragm seal
Hygienic	Tri-Clamp DIN11851 DIN11864-1 NEUMO Varivent SMS DRD Universal adapter
Material process membrane	316L, AlloyC, Tantal, PTFE, Rhodium>Gold
Material gasket	None, diaphragm welded
Fill fluid	Silicone oil, Inert oil, Vegetable oil, High temperature oil, Low temperature oil,
Material housing	Die-cast aluminum, AISI 316L
Output	4...20 mA 4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus
Certificates / Approvals	ATEX, FM, CSA, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI SIL EN10204-3.1 NACE CoC ASME-BPE 3A, EHEDG GL/ ABS/ LR/ BV/ DNV Marine
Options	Display PWIS free
Specialities	TempC Membrane
