FMP51 Guided radar measurement

  • Product Item : FMP51-AAACCDMBA4CHJ
  • Category: Level
  • Measuring Principle:Guided radar
  • Characteristic / Application:Basic device  Rod probe, Rope probe  Integrated data memory, Factory precalibrated, Reliable measuring for changing medias.
  • Supply / Communication:2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus) 4-wire (HART)
  • Process connection:Thread: G 3/4, MNPT 3/4 Flange: UNI Flange
  • INQUIRY   EMAIL

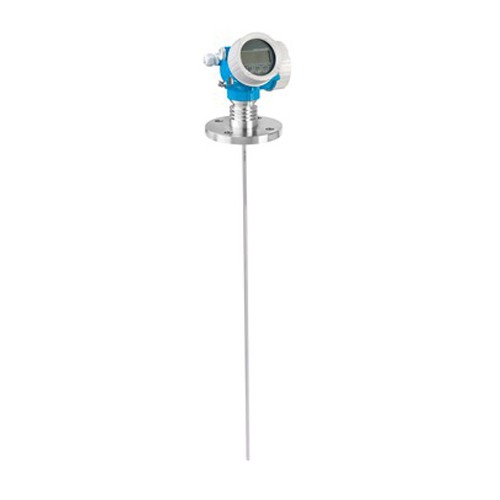

Guided radar measurement Time-of-Flight Levelflex FMP51

The standard sensor for highest demands in liquid level measurement


Levelflex FMP51 for level measurement even under extreme process conditions like high temperature and high pressure in the process industry. FMP51 offers maximum reliability even in case of moved surface and foam or when numerous tank baffles interfere with the measurement. Levelflex FMP51 is used for continuous level measurement of liquids, pastes and slurries but also for interface measurement. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

Benefits

  • Reliable measurement even for changing product and process conditions

  • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

  • Highest reliability due to new Multi-Echo Tracking evaluation

  • Hardware and software developed according to IEC 61508 up to SIL3

  • Seamless integration into control or asset management systems

  • Intuitive, menu-guided operation concept (on-site or via the control system) in national languages reduces costs for training, maintenance and operation

  • World's easiest proof test for SIL and WHG saves time and costs

Field of application

Version with rod, rope or coax probe.

  • Process connections: Threads or flange

  • Temperature: -40 to +200°C (-40 to +392°F)

  • Pressure: -1 to +40bar (-14.5 to +580psi)

  • Maximum measuring range: Rod 10m (33ft), rope 45m (148ft), coax 6m (20ft)

  • Accuracy: ±2mm (0.08")

  • International explosion protection certificates, overfill prevention WHG, SIL, marine approval, 5-point linearity protocol

Features and specifications

Measuring Principle Guided radar
Characteristic / Application Premium device
Rod probe, Rope probe, Coaxial probe
Integrated data memory, Factory precalibrated, Reliable measuring: in case of moved surface + foam, for changing medias.
Interface measurement Clean interfaces liquid/ liquid;
Simultaneous measurement of interface and overall level
Supply / Communication 2-wire (HART/ PROFIBUS PA/ FOUNDATION Fieldbus)
4-wire (HART)
Accuracy Rod probe :+/- 2 mm (0.08 in)
Rope probe <= 15 m (49 ft): +/- 2 mm (0.08 in)
Rope probe > 15 m (49 ft): +/- 10 mm (0.39 in)
Coaxial probe: +/- 2 mm (0.08 in)
Ambient temperature -40...+80 °C
(-40...+176 °F)
Process temperature –40...+200 °C
(–40...+392 °F)
Process pressure absolute / max. overpressure limit Vacuum...40 bar
(Vacuum...580 psi)
Main wetted parts Rod probe:
316L, Alloy C, Ceramic
Rope probe:
316, 316L, Alloy C, Ceramic
Coaxial probe:
316L, Alloy C, Ceramic, PFA
Process connection Thread:
G3/4...G1 1/2;
MNPT 3/4...MNPT1 1/2
Flange:
ASME 1 1/2"...8", DN50...DN 200, JIS 10K
Sensor length Rod probe: 10 m (33 ft)
Rope probe: 45 m (148 ft)
Coaxial probe: 6 m (20 ft)
Max. measurement distance Rod: 10 m (33 ft) Min DK>1.6
Rope: 25 m...30 m (82ft...98 ft) Min DK>1.6;
30m...45 m (98ft...148 ft) Min DK>1,9
Coaxial probe: 6 m (20 ft) Min DK>1.4
Output 4...20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus

Certificates / Approvals ATEX, FM, CSA, CSA C/US, IECEx, NEPSI, KC, INMETRO
Overfill prevention WHG
SIL
EN10204-3.1
Marine

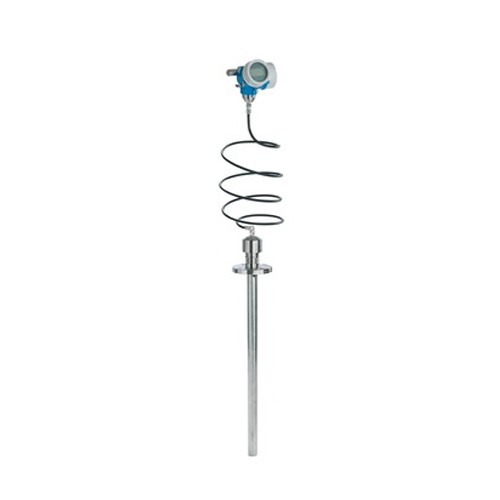

Options Sensor remote with 3 m/9 ft cable
Gas-tight feed through

Application limits Horizontal storage tank cyl.: use coax probe
Corrosive liquids: FMP52
Interface measurement: Use coax system in favor (coax probe, bypass, stilling well)
Interface with emulsion: FMP55
