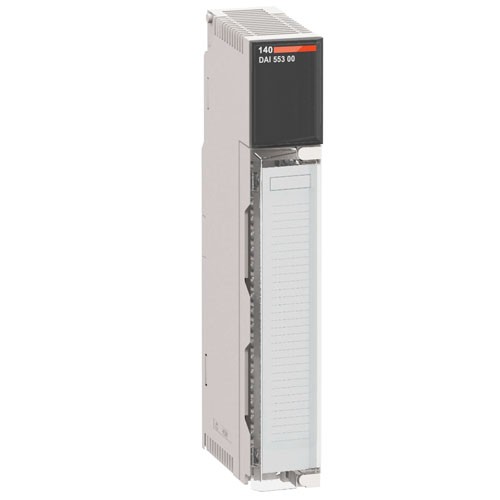

  • Schneider 140DAI54000 discrete input module Modicon Quantum

Schneider 140DAI54000 discrete input module Modicon Quantum

  • Product Item : 140DAI54000
  • Category： Schneider
  • Range of product: Modicon Quantum automation platform
  • Product or component type: VAC discrete input modules
  • Discrete input number:16
  • Discrete input voltage:115 V AC
  • INQUIRY   EMAIL
无标题文档

discrete input module Modicon Quantum - 16 I - 115 V AC - 16 channels

140DAI54000 is already discontinued ,replaced by BMXDAI0814

Specifications

Main
Range of product Modicon Quantum automation platform
Product or component type VAC discrete input modules
Software name Concept
ProWORX 32
Unity Pro
Discrete input number 16
Complementary
group of channels 16
Addressing requirement 1 input word
Discrete input voltage 115 V AC
Input current 11.1 mA at 57...63 Hz
13.2 mA at 47...53 Hz
Voltage state 1 guaranteed 79...132 V AC at 57...63 Hz
85...132 V AC at 47...53 Hz
Voltage state 0 guaranteed 0...20 V AC at 57...63 Hz
0...20 V AC at 47...53 Hz
Input impedance 12000 Ohm capacitive at 57...63 Hz
14400 Ohm capacitive at 47...53 Hz
Network frequency limits 47…63 Hz
maximum leakage current 2.1 mA
Absolute maximum input 132 V continuous
156 V 10 s
200 V 1 cycle
Response time 4.9...0.75 ms x line cycle Off-On
7.3...12.3 ms On-Off
Isolation between channels 1780 Vrms for 1 minute
Isolation between channels and bus 1780 Vrms for 1 minute
Bus current requirement 180 mA
Maximum power dissipation in W 5.5 W
Local signalling 1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault detected (F)
16 LEDs (green) for input status
Marking CE
Module format Standard
Net weight 0.31 kg
Environment
Standards UL 508
CSA C22.2 No 142
Product certifications FM Class 1 Division 2
cUL
Resistance to electrostatic discharge 4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields 10 V/m 80…2000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0…60 °C
Ambient air temperature for storage -40…85 °C
Relative humidity 95 % without condensation
Operating altitude <= 5000 m
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 16.3 cm
Package 1 Width 4.5 cm
Package 1 Length 31.2 cm
Package 1 Weight 438.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 7
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 2.968 kg
Contractual warranty
Warranty 18 months

Dimensions Drawings

Racks for Modules Mounting
Dimensions of Modules and Racks

140DAI54000

(1)
2 slots
(2)
3 slots
(3)
4 slots
(4)
6 slots
(5)
10 slots
(6)
16 slots

Connections and Schema

115 Vac Discrete Input Module
Wiring Diagram

140DAI54000

N/C
Not Connected
