CPS12E Digital ORP sensor

  • Product Item : CPS12E-AA7PAA2
  • Category: Analysis
  • Measuring principle:Sensor ORP / Redox
  • Measurement range:-1500 mV to +1500 mV
  • Material: Sensor shaft: Glass to suit process ORP measuring element: Platinum or gold
  • INQUIRY   EMAIL

Endress+Hauser Digital ORP sensor Memosens CPS12E replace CPS12D,CPS12D is discontinued and phase out from July,2024.

You can't order CPS12D series again.

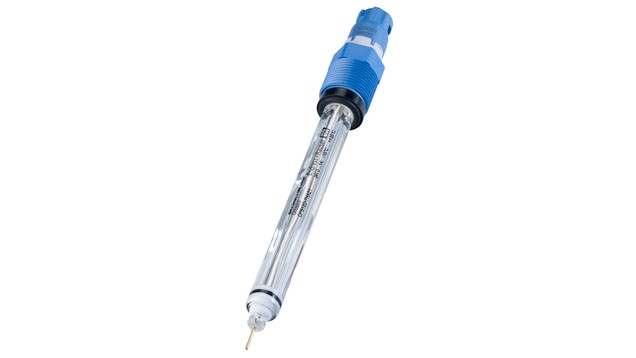

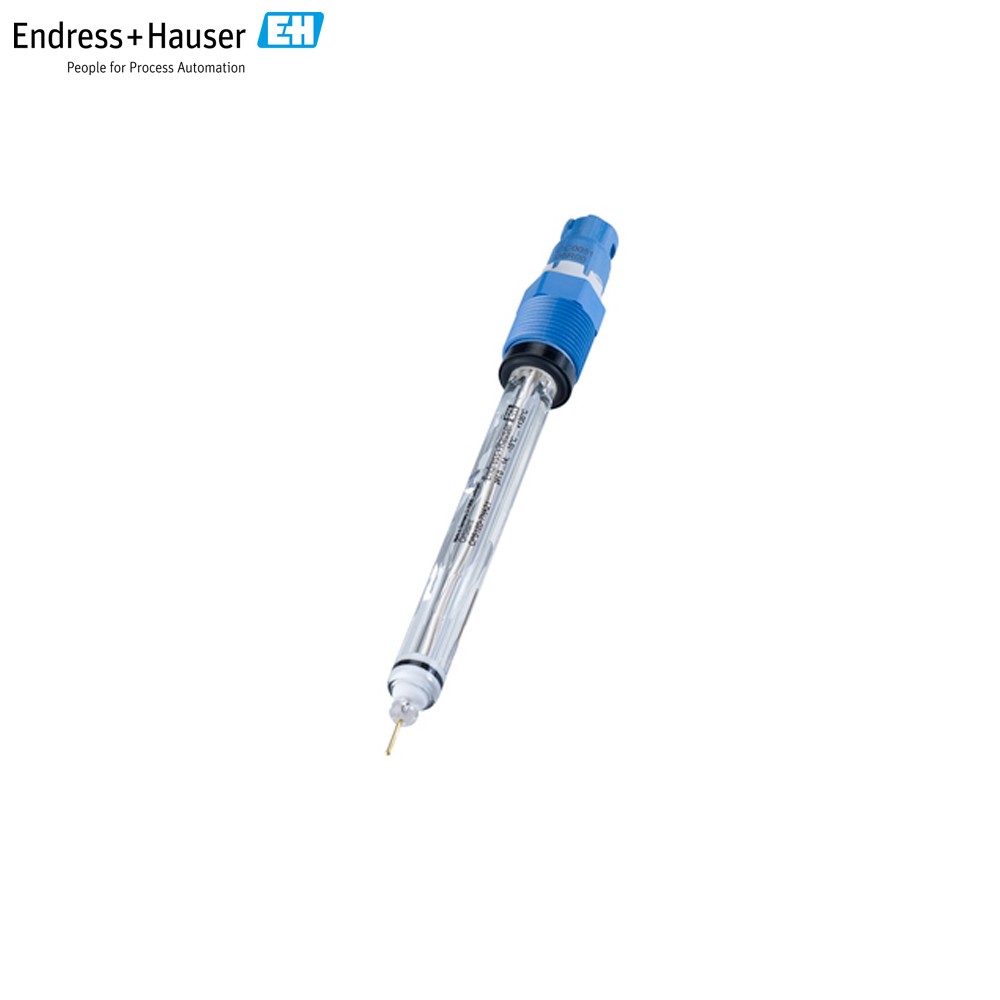

Digital ORP sensor Memosens CPS12E
Memosens 2.0 ORP electrode for standard applications in process and water & wastewater industries


Field of application

Memosens CPS12E is the digital all-round ORP sensor. It measures reliably even in harsh applications or hazardous areas. Designed for low maintenance and a long operating life, the ORP sensor offers you best value for money. Memosens CPS12E features Memosens 2.0 digital technology that provides the perfect basis for predictive maintenance thanks to extended storage of calibration and process data. The plug & play principle of Memosens allows for easy operation and more process uptime.

  • Long-term monitoring and limit monitoring of processes with stable process conditions:
    - Chemical industry
    - Pulp & paper industry
    - Power plants
    - Incineration plants

  • Water & wastewater treatment:
    - Drinking water
    - Cooling water
    - Well water
    - Wastewater treatment plants

With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.


Benefits

  • Robust, low maintenance ORP sensor: Large, dirt-repellent PTFE junction protects from soiling by the medium. Long poison diffusion path prevents poisoning of the electrode reference.

  • Suitable for harsh applications: Gold pin or platinum cap cover the full range of oxidizing or reducing media. Shaft glass ensures high chemical stability. The sensor is pressure stable up to 17 bar (246.5 psi) absolute.

  • Memosens 2.0 technology enables the sensor to store more process and calibration data. It lays the basis for IIoT services and predictive maintenance.

  • Extremely reliable measurement with to non-contact, inductive signal transmission results in increased process safety.

  • Lab calibration and fast sensor replacement on site allow for minimized process downtimes, reducing operating costs.


  • Measuring principle

    Sensor ORP / Redox

  • Application

    Long-term monitoring and limit control in processes with stable process conditions
    Water treatment

  • Characteristic

    Digital ORP sensor for standard applications in process
    technology and environmental engineering with dirt-repellent PTFE junction and integrated temperature sensor

  • Measurement range

    -1500 mV to +1500 mV

  • Measuring principle

    Gel compact electrode with teflon junction and double gel reference
    Measuring part as gold-pin or platinum ring

  • Design

    All shaft lengths with temperature sensor
    Advanced gel technology

  • Material

    Sensor shaft: Glass to suit process
    ORP measuring element: Platinum or gold

CPS12D-7NA21

Basic model
Orbisint CPS12D
Version:
7 Basic version
Measuring surface:
NA Gold
Shaft length:
2 120 mm
Approval:
1 Non-hazardous area

CPS12E-AA7GAA2

  • Approval
    AA
    Non-hazardous area
  • Electrode Type
    7
    Basic version,temperature sensor NTC 30k
  • Application Range
    G
    Gold, -1500 mV...1500 mV, -15...135oC,0,8...17 bar (abs)
  • Reference System
    AA
    PTFE ring junction,3 M KCl, Ag/AgCl
  • Shaft Length
    2
    120mm


CPS12D-7PA21

Basic model
Orbisint CPS12D
Version:
7 Basic version
Measuring surface:
PA Platinum
Shaft length:
2 120 mm
Approval:
1 Non-hazardous area

CPS12E-AA7PAA2


  • Approval
    AA
    Non-hazardous area
  • Electrode Type
    7
    Basic version,temperature sensor NTC 30k
  • Application Range
