Endress+Hauser COV45-41TN1

无标题文档

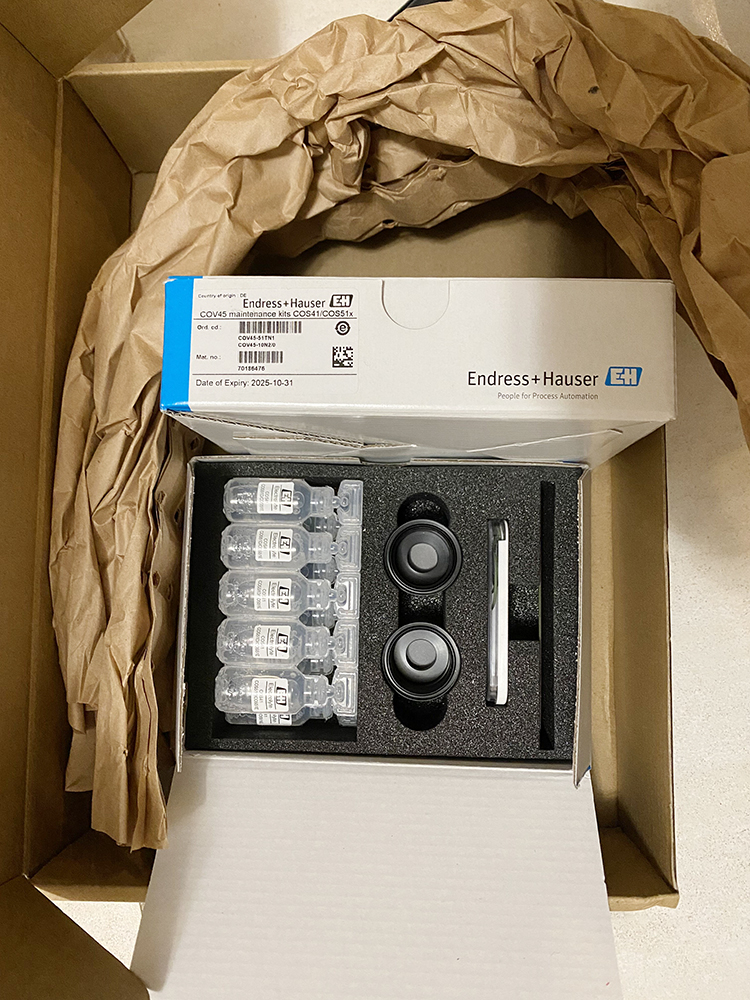

COV45 Maintenance parts for Memosens and fixed cable sensors COS51D,COS51E and COS41. Include membrane caps, o-rings and further maintenance materials,replace COY31-Z.
COV45-51TN1(COV45-10N2/0) is used for COS51D,COS51E;
COV45-41TN1 is used for COS41.
 COV45-51TN1(COV45-10N2/0) is used for COS51D,COS51E;
 COV45-51TN1(COV45-10N2/0) is used for COS51D,COS51E;






Digital oxygen sensorOxymax COS51D

Memosens amperometric oxygen sensor for water, wastewater

and utilities


Oxymax COS51D is a reliable and highly accurate oxygen sensor for all kinds of water & wastewater applications (including hazardous areas). Designed to be low-maintenance with a long operating life, the sensor offers outstanding value for money. Thanks to Memosens digital technology, the Oxymax COS51D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.

Benefits

  • Maximum measurement accuracy

  • Logging of sensor load data for easy traceability

  • Intelligent, self-monitoring sensor

  • Minimum calibration effort thanks to simple air calibration

  • Long maintenance intervals

  • Approved for hazardous area use


Field of application

Oxymax COS51D measures the dissolved oxygen concentration in:

  • Wastewater treatment plants:
    - O2 control in the aeration basin
    - Process water treatment and monitoring

  • Water works:
    - Status monitoring of drinking water (oxygen enrichment, corrosion protection, etc.)
    - Water quality monitoring in rivers, lakes or seas

  • Utilities of all industries:
    - O2 control in the biological treatment
    - Process water treatment and monitoring

The sensor is suitable for hazardous area use (ATEX, FM, CSA).


Features and specifications

Oxygen
Measuring Principle Sensor Oxygen
Application Aeration tank, river monitoring, water treatment, fish farming.
Characteristic Amperometric 3-electrode sensor to measure dissolved oxygen.
Measurement range 0,01 - 100mg/l
Measuring principle Closed membrane covered amperometric 3-electrode system.
Design digital signal transmission
Storage of the calibration datas in the sensor.
Material Sensor body : POM
Membrane cap : POM
Dimension Diameter : 40mm
(1.56inch)Length : 220mm
(8.58inch)
Process temperature max. 50°C
(max.122°F)
Process pressure max. 10bar
(max.145psi)
Connection - Memosens connector- Process : G1" , NPT3/4
