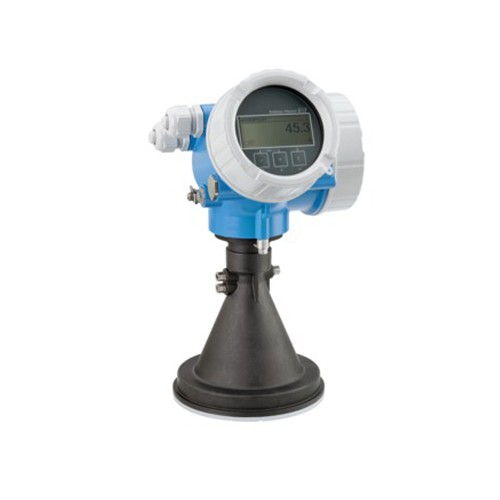

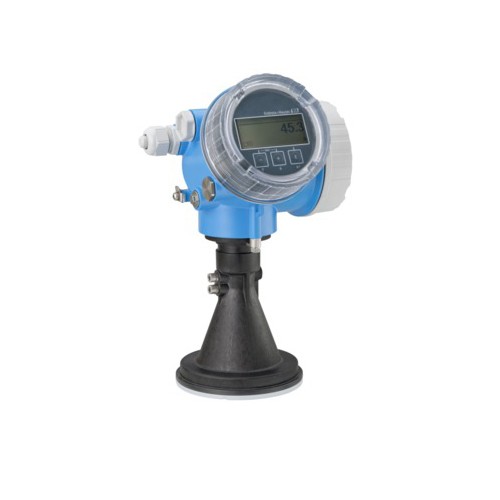

Radar measurement Time-of-Flight Micropilot FMR56

Economically efficient basis model for level measurement in solids


Micropilot FMR56 is particularly designed for light-duty process conditions as they occur in silos or bins for solids. Micropilot free space radar is used for continuous,
non-contact level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.

Benefits

  • Reliable measurement even for changing product and process conditions

  • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

  • Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation

  • Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy)

  • Seamless integration into control or asset management systems

  • Intuitive, menu-guided operation concept (on-site or via the control system)

  • World's easiest proof test concept for SIL and WHG saves time and cost

Field of application

PP-plated horn antenna can be easily aligned to the surface of the solids by the mounting bracket or a turnable seal.

  • Process connections: Mounting bracket or slip-on flange

  • Temperature: -40 to +80°C (-40 to +176°F)

  • Pressure: -1 to +3bar (-14.5 to +43.5psi)

  • Maximum measuring range: 30m (98ft)

  • K-band: 26GHz

  • International explosion protection certificates, SIL, 5-point linearity protocol

Features and specifications

Measuring Principle Level radar solid
Characteristic / Application For simple applications:
Reliable non-contact level measurements in silos or storage tanks for bulk solids
Supply / Communication 2-wire (HART/ PROFIBUS PA/ FOUNDATION Fieldbus)
4-wire (HART)

Frequency K-band (~26 GHz)
Antenna Horn DN80/3", PP plated
Horn DN100/4", PP plated
Accuracy +/- 3 mm (0.12 in)
Ambient temperature -40 °C...+80 °C
(-40 °F...+176 °F)
Process temperature -40 °C...+80 °C
(-40 °F...+176 °F)
Process pressure absolute / max. overpressure limit Vacuum...3 bar
(Vacuum...43.5 psi)
Main wetted parts PP, UP
Process connection Flange:
UNI DN80...DN150
(3"...6")
Mounting bracket
Max. measurement distance 30 m (98 ft)
Output 4...20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus

Certificates / Approvals ATEX, FM, CSA, CSA C/US, IECEx, NEPSI, KC, INMETRO
SIL

Options Display,
Customized parameterization

Specialities Safety and reliability with Multi-Echo Tracking
HistoROM
Application limits DK < 1.6
Reduction of the max. possible measuring range through:
Media with poor reflection properties
Angle of repose
Extremely loose surfaces of bulk solids, e.g. bulk solids with low bulk weight for pneumatic filling
Build-up, above all of moist products
