  • PMP131 Absolute and gauge pressure transmitter

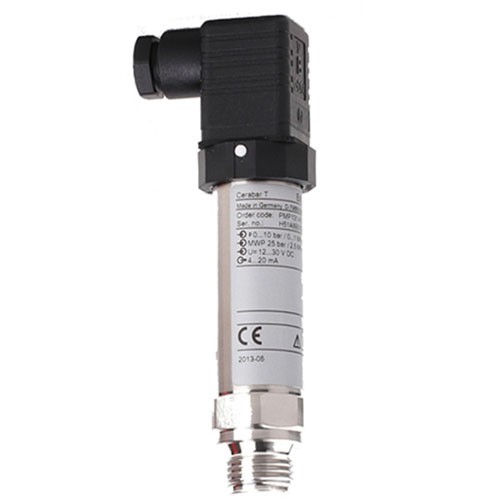

PMP131 Absolute and gauge pressure transmitter

  • Product Item : PMP131-A1611A1T
  • Category: Pressure
  • Measuring Principle:Absolute and gauge pressure
  • Characteristic:Cost-effective pressure transducer, piezoresistive sensor with metallic measuring diaphragm
  • Measuring cell:1bar...400bar (15psi...6000psi)
  • Output:4...20mA analogue, PNP switch
  • INQUIRY   EMAIL

Absolute and gauge pressure Cerabar PMP131 is Cost-effective pressure transducer with oil-free ceramic sensor for measurement in gases or liquids


The Cerabar PMP131 is a price-attractive compact pressure transmitter with piezoresistive sensor with metallic measuring diaphragm for absolute and gauge pressure measurement.



Benefits

  • Compact pressure transducer

  • Overload-resistant sensor up to 400bar

  • Small flush mounted process connections

Field of application

Pressure transducer for measuring absolute pressure and gauge pressure in gases, vapors, liquids and dusts.

  • Process connections: Threads

  • Process temperature: -25 to +70°C (-13 to +158°F)

  • Pressure:-1/0 up to +400bar (-15/0 up to +6000psi)

  • Accuracy: ±0.5%

  • International explosion protection certificates, SIL, marine approvals

Features and specifications

Measuring Principle Absolute and gauge pressure
Characteristic Cost-effective pressure transducer, piezoresistive sensor with metallic measuring diaphragm
Supply voltage Analogue output:
12...30V DC
Switch output:
18...32V DC
Reference Accuracy 0,5%
Long term stability 0,15% of URL/year
Process temperature -25°C...70°C
(-13°F...158°F)
Ambient temperature -25°C...70°C
(-13°F...158°F)
Measuring cell 1bar...400bar
(15psi...6000psi)
Max. overpressure limit 600bar (9000psi)
Process connection Threads
Output 4...20mA analogue,
PNP switch
Certificates / Approvals ATEX
SIL
GL marine
Options calibration protocol
