  • FTL51 Vibronic Point level detection Liquiphant
  • FTL51 Vibronic Point level detection Liquiphant
FTL51 Vibronic Point level detection Liquiphant FTL51 Vibronic Point level detection Liquiphant

FTL51 Vibronic Point level detection Liquiphant

  • Product Item : FTL51-KAE2BB4E5A
  • Category: Level
  • Measuring Principle:Vibration Liquids
  • Characteristic / Application :Liquiphant M Density with Density Computer FML621 Temperature and Pressuremeasurement Modular housing concept wide range of process connections pipe extension up to 3m (6
  • Sensor length:115...3000mm >3000...6000mm (Option)
  • Output:Pulse
  • INQUIRY   EMAIL

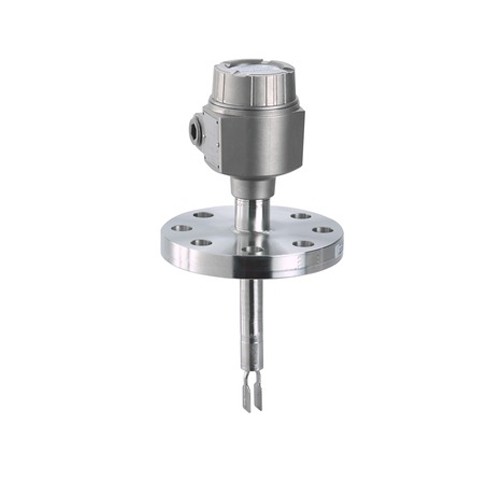

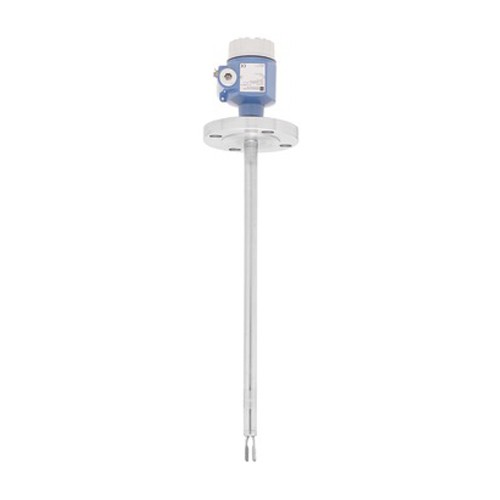

Vibronic Point level detection Liquiphant FTL51

Point level switch with extension tube for liquids in all industries


Liquiphant FTL51 is a point level switch with extension tube for use in hazardous areas with all international certificates. Useable in all industries. FTL51 offers functional safety SIL2/SIL3. With the second line of defense highest degree of safety and availability of the device can be guaranteed. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.



Benefits

  • Use in safety systems requiring functional safety to SIL2/SIL3 in accordance with IEC 61508/IEC 61511-1

  • International explosion protection certificates and overfill prevention certificate (WHG)

  • No calibration required, easy to start up

  • No mechanically moving parts: no maintenance, no wear, long operating life.
    Monitoring of fork for damage: guaranteed function

  • Second line of defense to protect the environmental

  • Variety of standardized process connections for all applications

  • Stainless steel (316L) and high-corrosion resistant sensor material (Alloy)

Field of application

Point level switch with extension tube for all liquids.

  • Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)

  • Temperature: -50 to +150°C (-58 to +302°F)

  • Pressure: -1 to +100bar (-14.5 to +1,450psi)

  • Sensor material: 316L, Alloy

  • International explosion protection certificates, overfill prevention WHG, SIL

Features and specifications

Density measurement
Measuring Principle Vibration Liquids
Characteristic / Application Liquiphant M Density with Density Computer FML621 Temperature and Pressuremeasurement
Modular housing concept wide range of process connections
pipe extension up to 3m (6m option) for compensation (option)
Supply / Communication Transmitter power supply (MUS)
Ambient temperature -50...70°C
-50...60°C for hazardous applications
Process temperature 0...80°C (validity of accuracy data)
-50...0°C / 80...150 °C (with reduced technical data)
Process pressure absolute 0...25bar
>25..100bar (with reduced technical data)
Wetted parts 316L/C4
Sensor length 115...3000mm
>3000...6000mm (Option)
Output Pulse
Certificates / Approvals ATEX
IECEx
Specialities Commissioning with ReadWin2000
Components Density Computer FML621
Point Level measurement/Liquids Level meter
Measuring Principle Vibration Liquids
Characteristic / Application Modular housing concept
wide range of process connections
Analogue and bus interfaces
Extensive certificate range (e.g. Ex,WHG)
pipe extension up to 3m (6m option)
Supply / Communication PROFIBUS PA
19...253V AC
10...55V DC-PNP
19...253V AC or 10...55V DC
8/16mA, 11...36V DC
NAMUR
PFM
Ambient temperature -50 °C...+70 °C
(-58 °F...+158 °F)
Process temperature -50 °C...+150 °C
(-58 °F...+302 °F)
Process pressure absolute / max. overpressure limit Vacuum...100 bar
Min. density of medium 0.5g/cm³(0.4g/cm³ optional)
Main wetted parts 316L / Alloy
Process connection Thread:
G3/4A, G1A, R3/4", R1, NPT3/4, NPT1
Flange:
DN25...DN100,
ASME 1"...4",
JIS 25A...100A
Process connection hygienic Tri-Clamp ISO2852
Sensor length Length 130mm (5.12") (Liquiphant II)
148mm...6000mm (5.83"...236")
Output PROFIBUS PA
19...253V AC
10...55V DC-PNP
19...253V AC bzw 10...55V DC
8/16mA, 11...36V DC
NAMUR
PFM
Certificates / Approvals ATEX, FM, CSA, NESPI, TIIS, INMETRO
Overfill prevention WHG
SIL
EN10204-3.1
NACE
ASME B31.3
Options Heavy duty stainless steel housing mainly for the oil and gas industry
Specialities Foamdetection
Detect a densitychange
second line of defense

Components FTL325P/FTL375P Interface PFM
FTL325N/FTL375N Interface NAMUR
